Description

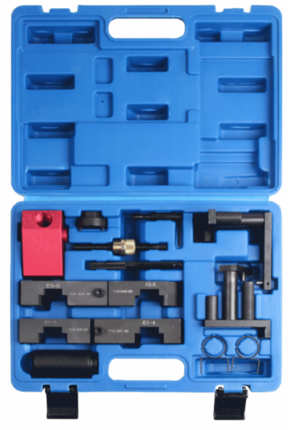

Engine Timing Tool Kit For the BMW V8 Range
The kit includes the following:
- Camshaft Alignment Fixtures: Two camshaft alignment jigs to fix the camshafts in the TDC orientation during assembly.
- Rigid Chain Tensioner: To tension the primary chain.
- M60 Crankshaft Pin: Top dead center pin to align the flywheel at the TDC position – for M60 Engines.
- M62 Crankshaft Pin: Top dead center pin to align the flywheel at the TDC position – for M62 Engines.
- Secondary Chain Tensioner Locking Springs: Utilized to lock the timing chain tensioners in the retracted position (2 pcs included).
- M62 Chain Tensioning Bracket Trestle: Used to provide a mounting point for the rigid chain-tensioning tool while the front timing case is removed from the engine for servicing the timing-chain, servicing of VANOS components or adjusting cam timing.
- M62 VANOS Timing Tool: Two fixtures to lock the sensor wheels in place during timing of VANOS equipped M62 engines.
- M62 VANOS Turning / Adjustment Socket: Special socket utilized to turn the VANOS cam phase during assembly and cam-timing of M62 engines.
- VANOS Electromagnetic Valve Socket: Special deep, thin-wall 32-mm socket that is required to remove the electro-magnetic valve on 6 and 8 cylinder engines equipped with VANOS variable valve timing.
